CELO
Abraz. metálica doble gas M6 GD
Cód. 9N28GD
Toca para ampliar

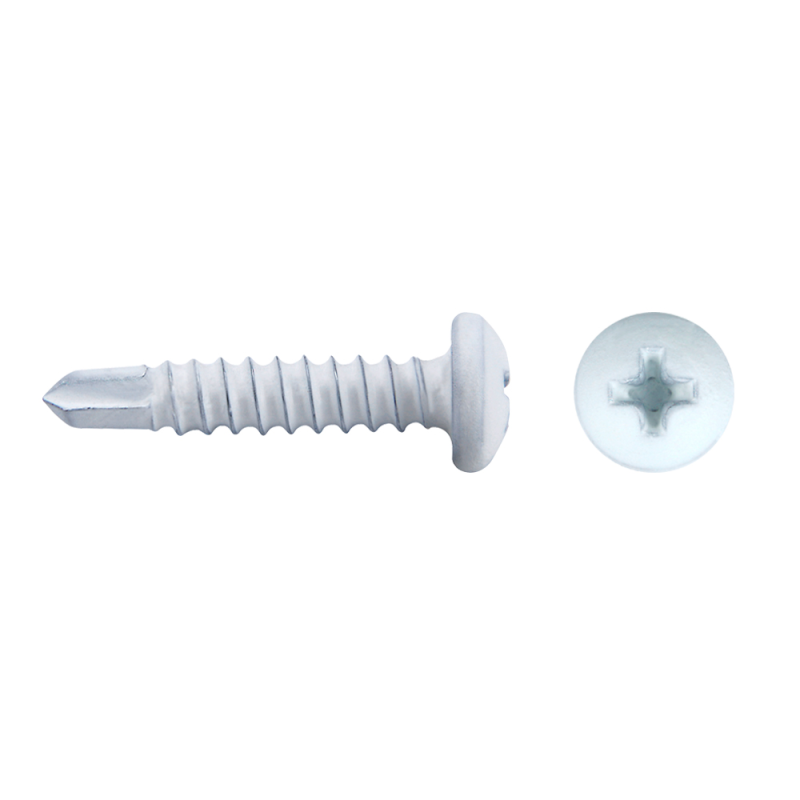

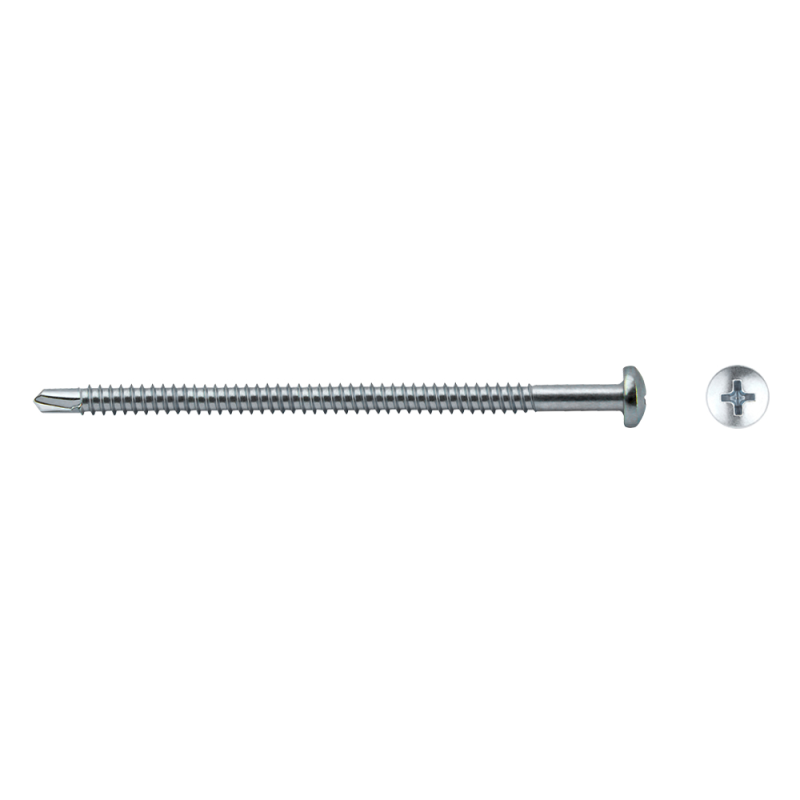

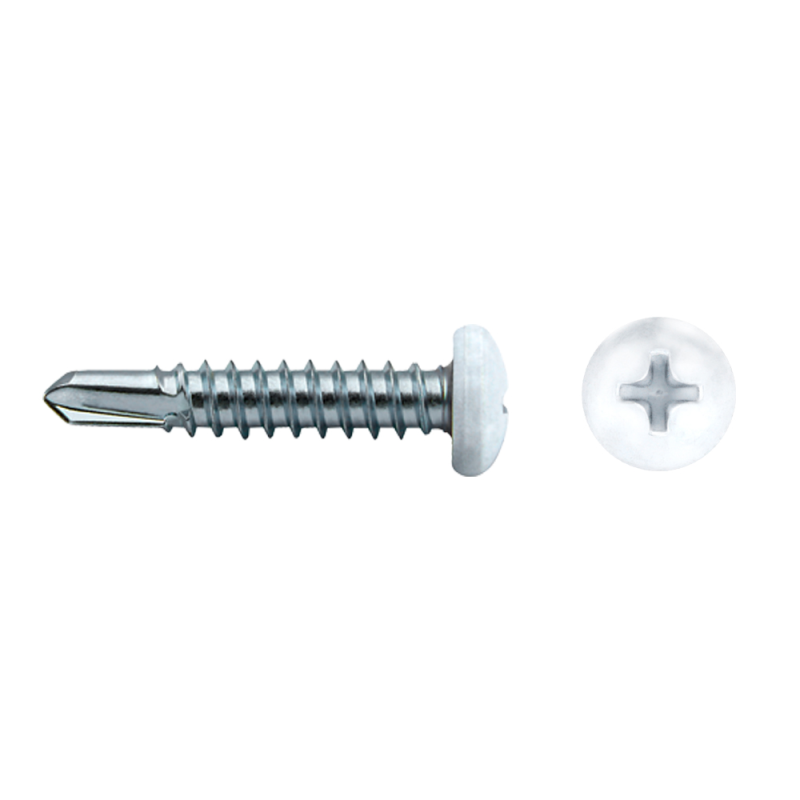

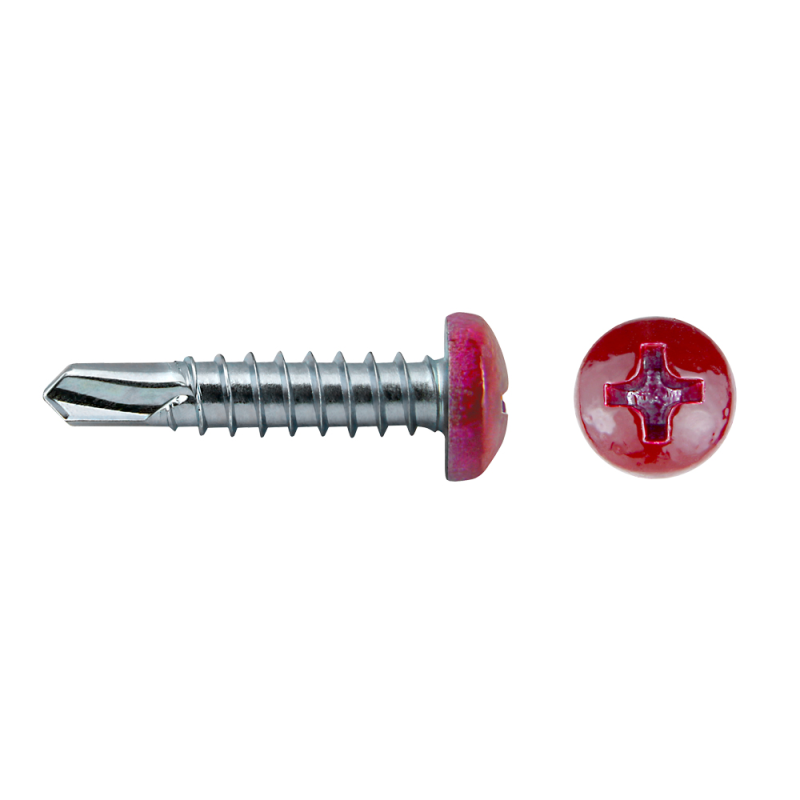

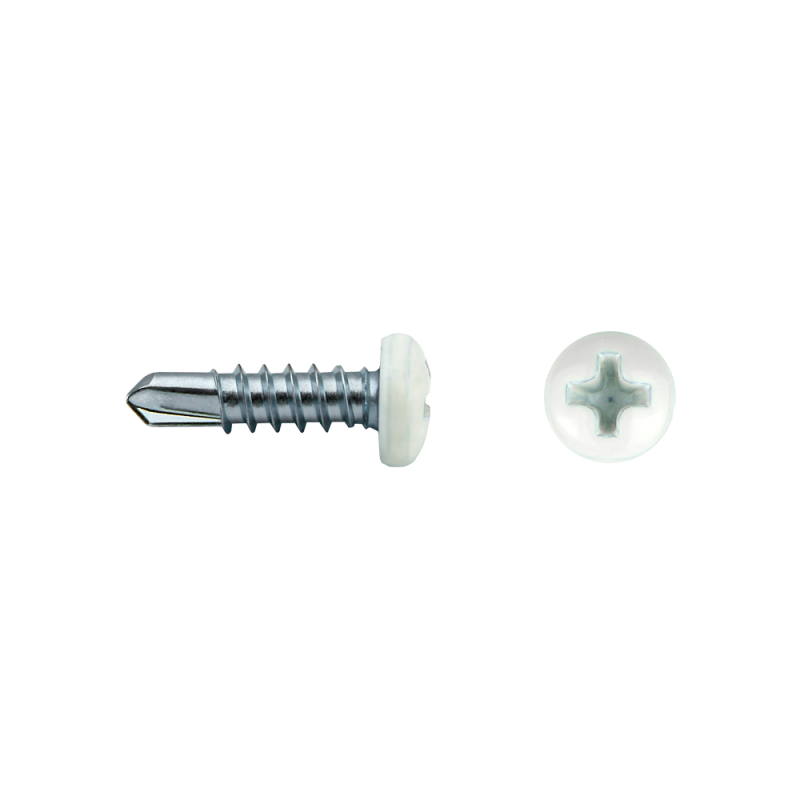

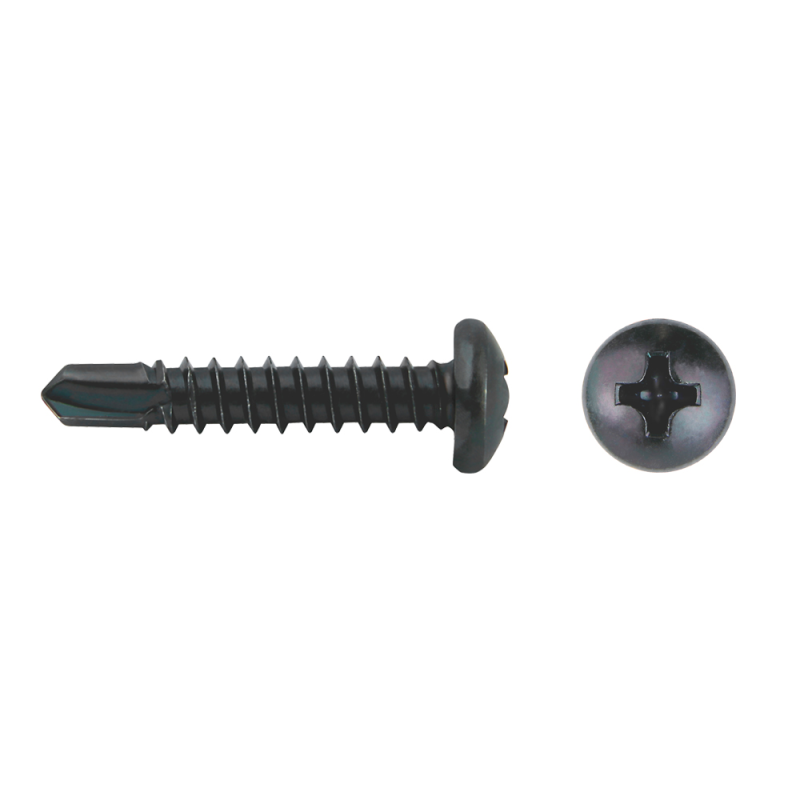

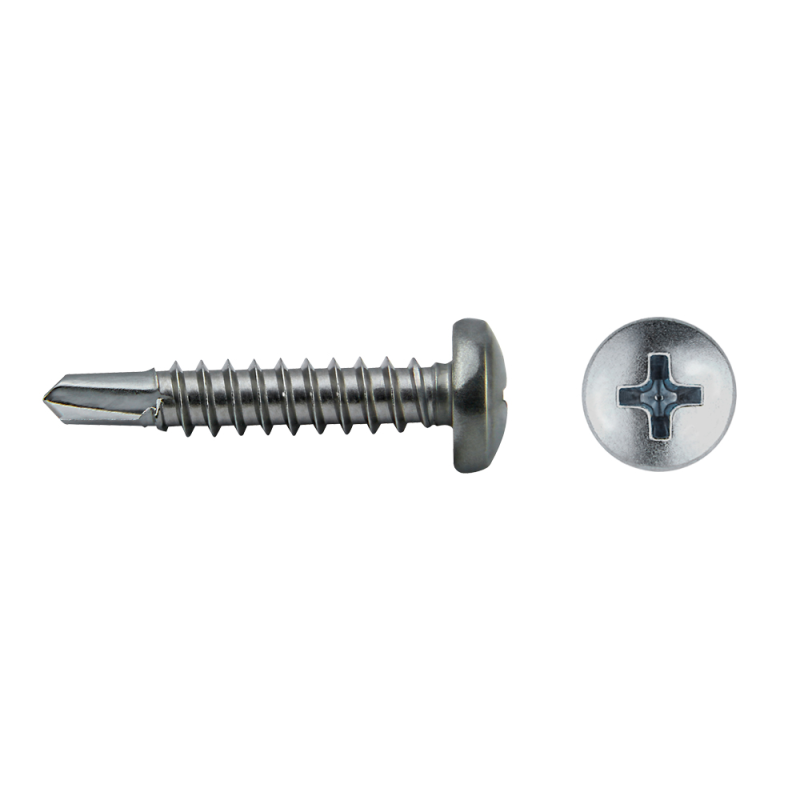

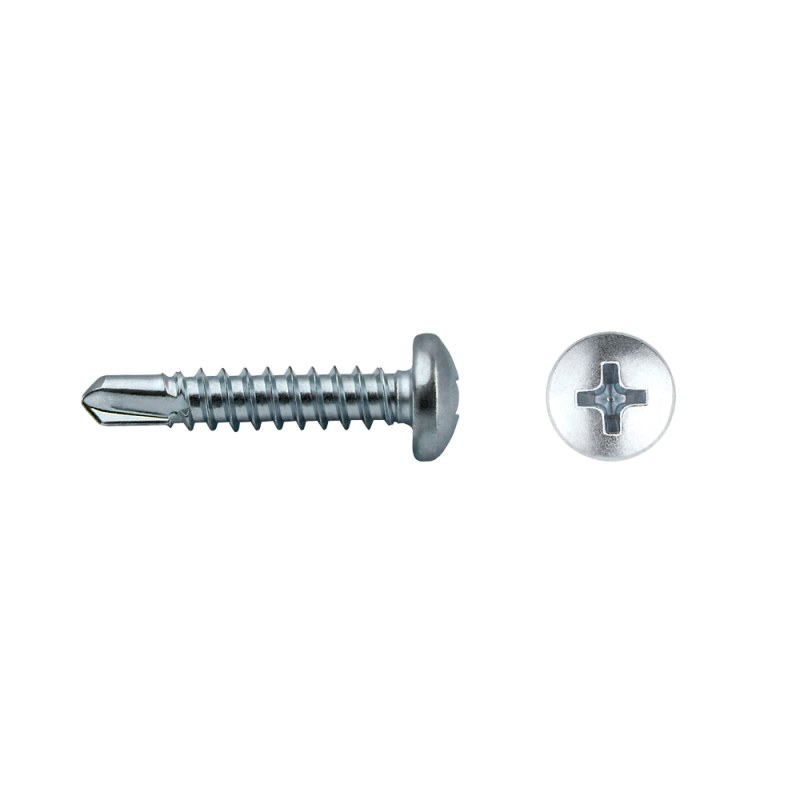

Tornillo punta broca DIN 7504N
Diámetro:
Altura de la cabeza (mm):
Variantes disponibles 73
| Código | Diámetro de cabeza (mm) | Unidades de embalaje | Longitud (mm) | GTIN |
|---|---|---|---|---|
| 9X35167504N | 6.9 | 500 | 16 | 8425586130453 |
| 9X35197504N | 6.9 | 1000 | 19 | 8425586124537 |
| 9X35957504N | 6.9 | 1000 | 9.5 | 8425586105802 |
| 9X39167504N | 7.5 | 500 | 16 | 8425586131009 |
| 9X42197504N | 8.2 | 500 | 19 | 8425586124490 |
| 9X42257504N | 8.2 | 250 | 25 | 8425586129556 |
| 9X48167504N | 9.5 | 250 | 16 | 8425586128917 |
| 9X48257504N | 9.5 | 250 | 25 | 8425586121598 |
| 9X48387504N | 9.5 | 500 | 38 | 8425586462707 |
| 9X48757504N | 9.5 | 100 | 75 | 8425586453064 |
| 935117504N | 6.9 | 1000 | 11 | 8425586107745 |
| 935137504N | 7 | 500 | 13 | 8425586101866 |
| 9N35137504N | 6.9 | 500 | 13 | 8425586106922 |
| 9W35137504N | 6.9 | 500 | 13 | 8425586115948 |
| 935167504N | 6.9 | 500 | 16 | 8425586102962 |
| 9N35167504N | 6.9 | 500 | 16 | 8425586114323 |
| 935197504N | 6.9 | 500 | 19 | 8425586101927 |
| 9N35197504N | 6.9 | 500 | 19 | 8425586113937 |
| 935227504N | 6.9 | 500 | 22 | 8425586114620 |
| 935257504N | 6.9 | 250 | 25 | 8425586105031 |
| 935327504N | 6.9 | 250 | 32 | 8425586104942 |
| 935957504N | 6.9 | 1000 | 9.5 | 8425586106595 |
| 9N35957504N | 6.9 | 1000 | 9.5 | 8425586104553 |
| 9W35957504N | 6.9 | 1000 | 9.5 | 8425586102955 |
| 939137504N | 7.5 | 500 | 13 | 8425586107523 |
| 939167504N | 7.5 | 500 | 16 | 8425586102436 |
| 9N39167504N | 7.5 | 500 | 16 | 8425586146102 |
| 939197504N | 7.5 | 500 | 19 | 8425586102597 |
| 939257504N | 7.5 | 250 | 25 | 8425586104959 |
| 939327504N | 7.5 | 250 | 32 | 8425586105956 |
| 942137504N | 8.2 | 500 | 13 | 8425586103068 |
| 9N42137504N | 8.2 | 500 | 13 | 8425586109558 |
| 9W42137504N | 8.2 | 500 | 13 | 8425586109671 |
| 942167504N | 8.2 | 500 | 16 | 8425586102023 |
| 9N42167504N | 8.2 | 500 | 16 | 8425586125817 |
| 9W42167504N | 8.2 | 500 | 16 | 8425586146072 |
| 942197504N | 8.2 | 500 | 19 | 8425586104423 |
| 9N42197504N | 8.2 | 500 | 19 | 8425586106069 |
| 9W42197504N | 8.2 | 500 | 19 | 8425586146089 |
| 942227504N | 8.2 | 250 | 22 | 8425586101859 |
| 942257504N | 8.2 | 250 | 25 | 8425586107707 |
| 942327504N | 8.2 | 250 | 32 | 8425586103808 |
| 942387504N | 8.2 | 250 | 38 | 8425586108322 |
| 942507504N | 8.2 | 250 | 50 | 8425586146171 |
| 9481007504N | 9.5 | 50 | 100 | 8425586529332 |
| 9481107504N | 9.5 | 100 | 110 | 8425586470962 |
| 9481207504N | 9.5 | 100 | 120 | 8425586470955 |
| 948137504N | 9.5 | 500 | 13 | 8425586103167 |
| 948167504N | 9.5 | 250 | 16 | 8425586102269 |
| 9N48167504N | 9.5 | 250 | 16 | 8425586125466 |
| 948197504N | 9.5 | 250 | 19 | 8425586104461 |
| 9N48197504N | 9.5 | 250 | 19 | 8425586106717 |
| 948227504N | 9.5 | 250 | 22 | 8425586112350 |
| 948257504N | 9.5 | 250 | 25 | 8425586102979 |
| 9N48257504N | 9.5 | 250 | 25 | 8425586121628 |
| 9W48257504N | 9.5 | 250 | 25 | 8425586146027 |
| 948327504N | 9.5 | 250 | 32 | 8425586101804 |
| 9W48327504N | 9.5 | 250 | 32 | 8425586146034 |
| 948387504N | 9.5 | 500 | 38 | 8425586462653 |
| 9N48387504N | 9.5 | 500 | 38 | 8425586472492 |
| 9W48387504N | 9.5 | 500 | 38 | 8425586482750 |
| 948457504N | 9.5 | 250 | 45 | 8425586103082 |
| 948507504N | 9.5 | 250 | 50 | 8425586103037 |
| 948637504N | 9.5 | 200 | 63 | 8425586484945 |
| 948757504N | 9.5 | 100 | 75 | 8425586103846 |
| 948907504N | 9.5 | 50 | 90 | 8425586529257 |
| 955197504N | 10.8 | 250 | 19 | 8425586121741 |
| 955257504N | 10.8 | 250 | 25 | 8425586120478 |
| 955327504N | 10.8 | 250 | 32 | 8425586116334 |
| 955387504N | 10.8 | 250 | 38 | 8425586114828 |
| 955507504N | 10.8 | 250 | 50 | 8425586106724 |
| 955637504N | 10.8 | 100 | 63 | 8425586146188 |
| 955757504N | 10.8 | 100 | 75 | 8425586146195 |
Documentos
Descripción
El tornillo punta broca DIN 7504N de CELO está diseñado para fijaciones en chapas metálicas y estructuras ligeras , ofreciendo un montaje rápido y seguro. Su cabeza alomada con impronta Philips (PH) garantiza un ajuste preciso y fácil manejo con herramientas eléctricas, proporcionando un acabado limpio y profesional en cada instalación.
